Akoma Ntoso, Standards, technology, Uncategorized

What is Good Legislative XML?

I’m often asked what make on XML model better than another when it comes to representing laws and regulations. Just because a document is modeled in XML does not mean that it is useful in that form — the design of the schema matters in terms of what it enables or facilitates.

We have a few rules of thumb that we apply when either designing or adopting an XML schema:

  • Is it semantic?
    Reason: In order to process the information in a document, you have to understand what it is and what it means.
  • Is the presentation separated from the semantics as much as possible?
    Reason: We have moved beyond paper and nowadays it’s important to present information in form factors that just don’t suit the legacy constraints imposed by printing paper.
  • Is all the text (excluding any metadata section) in the natural reading order?
    Reason: The simplest way to present and process the text in a document is in the reading order of the text. This is particularly important is the presentation is to be added to the XML using simple CSS styling (as opposed to HTML transformation) and when the text is subject to complex amending instructions.
  • Does it, to the fullest extent possible, avoid the use of generated text?
    Reason: Similar to the last rule, it’s important for text to be displayed or amended when that text is represented. Generating text opens up a can of worms which can require sophisticated additional processing. Also, from a historical record of the text, which is essential for enacted law, having part of the text be generated by an external algorithm requires that the algorithm itself become part of the permanent record.
  • Is every provision that needs data associated with it permanently identifiable?
    Reason: With modern automation comes the need to not only manage the text of a provision but also state information. For example, is the current status of the provision pending, effective, repealed, or spent? While some of the metadata might be stored with the XML representation of the provision itself, sometimes it is better to store that metadata in a separate part of the document or in an external database. In these cases, it’s important to be able to permanently associate this external metadata with the provision — and this usually requires an immutable (permanent) identifier.
  • Is every provision that is referred to easily locatable?
    Reason: Laws are full of references (or citations). These are to provisions within the same document or to other documents or provisions within those documents. There needs to be a way to accurately and efficiently traverse and process these references. This need usually requires a locating identifier that an unambiguously identify the provision being referred to.
  • If the XML schema is for general use, is there an extensible way to add missing constructs?
    Reason: It is easy to claim to support all the legal traditions in the word, but extremely difficult to do so. While legal traditions are remarkably similar around the world, it’s impossible to predict every single construct that will arise — especially with documents data back hundreds of years. There has to be a way to implement constructs that don’t intrinsically exist within the base XML schema.
  • Is there an extensible metadata mechanism?
    Reason: A primary objective for representing a legislative or regulatory document in XML is for the processability it enables. This invariably means a need to record extensive metadata about the provisions found within the document. As the automation possibilities are endless, there needs to be a way to model and record the metadata that is generated.
  • Does it provide the facilities necessary to automate according to modern expectations?
    Reason: Some structure facilitate automation while others do not. For instance, flat structures can simplify the drafting process, but also make the automation process more difficult. It’s usually better to implement hierarchical structures and then hide the drafting complexity that creates with richer tools.

Standard
Akoma Ntoso, HTML5, LegisPro Sunrise, Standards, technology, Track Changes, Uncategorized, W3C

LegisPro Sunrise!!!

LegisPro Sunrise is almost done!. It has taken longer than we had hoped it would, but we are finally getting ready to begin limited distribution of LegisPro Sunrise, our productised implementation of our LegisPro drafting and amending tools for legislation and regulations. If you are interested in participating  in our early release program, please contact us at info@xcential.com. If you already signed up, we will be contacting you shortly.

LegisPro Sunrise is a desktop implementation of our web-based drafting and amending products. It uses Electron from GitHub, built from Google’s Chromium project, to bundle all the features we offer, both the client and server sides into a single easy-to-manage desktop application with an installer having auto-update facilities. Right now, the Windows platform is supported, but MacOS and Linux support will be added if the demand is there. You may have already used other Electron applications – Slack, Microsoft’s Visual Studio Code, WordPress, some editions of Skype, and hundreds of other applications now use this innovative new application framework.

Other versions

LegisProAIn addition to the Sunrise edition, we offer LegisPro in customised FastTrack implementations of the LegisPro product or as fully bespoke Enterprise implementations where the individual components can be mixed and matched in many different ways.

Akoma Ntoso model

AkomaNtoso

LegisPro Sunrise comes with a default Akoma Ntoso-based document model that implements the basic constructs seen in many parliaments and legislatures around the world that derive from the Westminster parliamentary traditions.

Document models implementing other parliamentary or regulatory traditions such as those found in many of the U.S. states, in Europe, and in other parts of the world can also be developed using Akoma Ntoso, USLM, or any other well-designed XML legislative schema.

Drafting & Amending

Our focus is on the drafting and amending aspects of the parliamentary process. By taking a digital-first approach to the process, we are able to offer many innovative features that improve and automate the process. Included out of the box is what we call amendments in context where amendment documents are extracted from changes recorded in a target document. Other features can be added through an extensive plugin mechanism.

Basic features

Ease-of-use

While offering sophisticated drafting capabilities for legislative and regulatory documents, LegisPro Sunrise is designed to provide the familiarity and ease-of-use of a word processor. Where it differs is in what happens under the covers. Rather than drafting using a general purpose document model and using styles and formatting to try to capture the semantics, we directly capture the semantic structure of the document in the XML. But don’t worry, as a drafter, you don’t need to know about the underlying XML – that is something for the software developers to worry about.

Templates

TemplateTemplates allow the boilerplate structure of a document to be instantiated when creating a new document. Out-of-the-box, we are providing generic templates for bills, acts, amendments, amendment lists, and a few other document types.

In addition to document templates, component templates can be specified or are synthesized when necessary to be used as parts when constructing a document.

For both document and component templates, placeholders are used to highlight area where text needs to be provided.

Upload/Download

As a result to our digital-first focus, we manage legislation as information rather than as paper. This distinction is important – the information is held in XML repositories (a form of a database) where we can query, extract, and update provisions at any level of granularity, not just at the document level. However, to allow for the migration from a paper-oriented to a digital first world, we do provide upload and download facilities.

Undo/Redo

undoRedoAs with any good document editor, unlimited undo and redo is supported – going back to the start of the editing session.

Auto-Recovery

Should something go wrong during an editing session and the editor closes, an auto-recovery feature is provided to restore your document to the state the document was at, or close to it, when the editor closed.

Contextual Insert Lists

insertLists

We provide a directed or “correct-by-construction” approach to drafting. What this means is that the edit commands are driven by an underlying document model that is defined to enforce the drafting conventions. Wherever the cursor is in the document, or whatever is selected, the editor knows what can be done and offers lists of available documents components that can either be inserted at the cursor or around the current selection.

Hierarchy

hierarchy

Document hierarchies form an important part of any legislative or regulatory document. Sometimes the hierarchy is rigid and sometimes it can be quite flexible, but either way, we can support it. The Sunrise edition supports the hierarchy Title > Part > Chapter > Article > Section > Subsection > Paragraph > Subparagraph out of the box, where any level is optional. In addition, we provide support for cross headings which act as dividers rather than hierarchy in the document. Customised versions of LegisPro can support whatever hierarchy you need — to any degree of enforcement. A configurable promote/demote mechanism allows any level to be morphed into other levels up and down the hierarchy.

Large document support

Rule-making documents can be very large, particular when we are talking about codes. LegisPro supports large documents in a number of ways. First, the architecture is designed to take advantage of the inherent scalability of modern web browsing technology. Second, we support the portion mechanism of Akoma Ntoso to allow portions of documents, at any provision level, to be edited alone. A hierarchical locking mechanism allows different portions to be edited by different people simultaneously.

Spelling Checker

checkSpelling

Checking spelling is an important part of any document editor and we have a solution – working with a third-party service we have tightly integrated with in order to give a rich and comprehensive solution. Familiar red underline markers show potential misspellings. A context menu provides alternative spellings or you can add the word to a custom dictionary.

Tagging support

Tagging

Beyond basic drafting, tagging of people, places, or things referred to in the document is something for which we have found a surprising amount of interest. Akoma Ntoso provides rich support for ontologies and we build upon this to allow numerous items to be tagged. In our FastTrack and Enterprise solutions we also offer auto-tagging technologies to go with the manual tagging capabilities of LegisPro sunrise.

Document Bar

docbar

The document bar at the top of the application provides access to a number of facilities of the editor including undo/redo, selectable breadcrumbs showing your location in the document, and various mode indicators which reflect the current editing state of the editor.

Command Ribbons and Context Menus

menuRibbons

Command ribbons and context menus are how you access the various commands available in the editor. Some of the ribbons and menus are dynamic and change to reflect the location the cursor or selection is at in the editor. These dynamic elements show the insert lists and any editable attributes. Of course, there is also an extensive set of keyboard shortcuts for many commonly used commands. It has been our goal to ensure that the majority of the commonly used documenting tasks can be accomplished from the keyboard alone.

Sidebar

SidebarA sidebar along the left side of the application provides access to the major components which make up LegisPro Sunrise. It is here that you can switch among documents, access on-board services such as the resolver and amendment generator, outboard services such as the document repository, and where the primary settings are managed.

Side Panels

sidePanel

Also on the left side are additional configurable side panels which provide additional views needed for drafting. The Resources view is where you look up documents, work with the hierarchy of the document being edited, and view provisions of other documents. The Change Control view allows the change sets defined by the advanced change control capabilities (described below) to be configured. Other panels can be added as needed.

Advanced features

In addition to the rich capabilities offered for basic  document editing, we provide a number of advanced features as well.

Document Management

Document management allows documents to be stored in an XML document repository. The advantage of storing documents in an XML repository rather than in a simple file share or traditional content management system is that it allows us to granularise the provisions within the documents and use them as true reference-able information – this is a key part of moving away from paper document-centric thinking to a modern digital first mindset. An import/export mechanism is provided to add external documents to the repository or get copies out. For LegisPro Sunrise we use the eXist-db XML database, but we can also provide customised implementation using other repositories.

Resolver

Our document management solution is built on the FRBR-based metadata defined by Akoma Ntoso and uses a configurable URI-based resolver technology to make human readable and permanent URIs into actual URLs pointing to locations within the XML repository or even to other data sources available on the Web.

Page & Line numbering

pagination

There are two ways to record where amendments are to be applied – either logically by identifying the provision or physically by page and line numbers. Most jurisdictions use one or the other, and sometimes even both. The tricky part has always been the page and line numbers. While modern word processors usually offer page and line numbers, they are dynamic and change as the document is edited. This makes this feature of limited use in an amending system. What is preferred is static page and line numbers that reflect the document at the last point it was published for use in a committee or chamber. We accomplish this approach using a back-annotation technology within the publishing service. LegisPro Sunrise also offers a page and line numbering feature that can be run without the publishing service. Page and line numbers can be display in the left or right margin in inline, depending on preference.

Amendment Generation

One of the real benefits of a digital first solution is the many tasks that can be automated – not by simply computerising the way things have always been done, but by rethinking the approach altogether. Amending is one such area. LegisPro Sunrise incorporates an onboard service to automatically generate amendment documents from changes recorded in the target document. Using tracked changes, the document hierarchy, and annotated page and line numbers, we are able to very precisely record proposed changes as amendments. Of course, the amendment generator works with the change sets to allow different amendment sets to be generated by specifying the named set of changes.

Plugin Support

plugins

LegisPro Sunrise is not the first incarnation of our LegisPro offering. We’ve been using the underlying technologies and precursors to those technologies for years with many different customers. One thing we have learned is that there is a vast variation in needs from one customer to another. In fact, even individual customers sometime require very different variations of the same basic system to automate different tasks within their organisation. To that end, we’ve developed a powerful plug-in approach which allows capabilities to be added as necessary without burdening the core editor with a huge range of features with limited applicability. The plugin architecture allows onboard and outboard services to be added, individual commands, menus, menu items, side panels, mode indicators, JavaScript libraries, and text string libraries to be added. In the long term, we’re planning to foster a plugin development community.

Proprietary or Open Source?

There are two questions that always come up relating to our position on standards and open source software:

  1. Is it based on standards? Yes, absolutely – almost to a fault. We adhere to standards whenever and however we can. The model built into LegisPro Sunrise is based on the Akoma Ntoso standard that has been developed over the past few years by the OASIS LegalDocML technical committee. I have been a continual part of that effort since the very beginning. But beyond that, we always choose standards-based technologies for inclusion in our technology stack. This includes XML, XSLT, XQuery, CSS, HTML5, ECMAScript 2015, among others.
  2. Is it open source?
    • If you mean, is it free, then the answer is only yes for evaluation, educational, and non-production uses. That’s what the Sunrise edition is all about. However, we must fund the operation of our company somehow and as we don’t sell advertising or customer profiles to anyone, we do charge for production use of our software. Please contact us at info@xcential.com or visit our website at xcential.com for further information on the products and services we offer.
    • If you mean, is the source code available, then the answer is also yes – but only to paying customers under a maintenance contract. We provide unfettered access to our GitHub repository to all our customers.
    • Finally, if you’re asking about the software we built upon, the answer is again yes, with a few exceptions where we chose a best-of-breed commercial alternative over any open source option we had. The core LegisPro Sunrise application is entirely built upon open source technologies – it is only in external services where we sometimes rely up commercial third-party applications.

1200px-HTML5_logo_and_wordmark.svg         CSS            JavaScript-logo

nodejs-new-pantone-black
AngularJS_logo.svg
electron
What does it cost?

As I already alluded to, we are making LegisPro Sunrise available to potential customers and partners, academic institutions, and other select individuals or organisations for free – so long as it’s not used for production use — including drafting, amending, or compiling legislation, regulations, or other forms of rule-making. If you would like a production system, either a FastTrack or Enterprise edition, please contact us at info@xcential.com.

Coming Soon

Book

I will soon also be providing a pocket handbook on Akoma Ntoso. As a member of the OASIS LegalDocML Technical Committee (TC) that has standardised Akoma Ntoso, it has been important to get the handbook reviewed for accuracy by the other TC members. We are almost done with that process. Once the final edits are made, I will provide information on how you can obtain your own copy.

Standard
Akoma Ntoso, How To, Standards, Uncategorized

Using the <hcontainer> Element Properly

When I started my blog five years ago, I said would try not to get too technical. Overall, I’ve stuck to that. However, with Akoma Ntoso now essentially standardised, I think it is time to start covering some areas of it in a little more technical detail. So, from time to time, I’m going to delve into a little technical mumbo jumbo to cover some subjects that come up frequently.

In this blog, I want to cover the proper use of the <hcontainer> element. Akoma Ntoso has rich support for hierarchical documents as legal documents tend to be strongly hierarchical. Consequently, there is a large selection of element tags to choose from. During the standardisation effort, we tried to identify as many hierarchical constructs we could find in legal documents, but it was impossible to identify every single construct in every single jurisdiction around the world. Indeed, we sometimes decided that some hierarchical levels were just too unique to a specific jurisdiction to warrant inclusion in a standard intended for worldwide adoption. Sometimes, having too many tags is worse than having not enough, especially when there is a way to handle the outlier cases.

So, what is the proper way to use the <hcontainer>? The <hcontainer>, or hierarchical container, is a generic element intended to be use to invent and element that is needed but not found among the existing Akoma Ntoso hierarchical elements. The @name attribute is used to define the name of the new element you’re inventing. For this reason, the value of the @name should be consistent with the element naming convention of Akoma Ntoso:

  • The name should be lowerCamelCase.
  • The name should be in British English rather than another variant of English or another language. (Yes, we have two exceptions to this rule in Akoma Ntoso, one because the English form didn’t exist and one because we didn’t notice a spelling variation)
  • The name should not already exist in Akoma Ntoso.

One question that comes up from time to time is whether an <hcontainer> can be used to define an element that already exists, but in another language. For instance, could I define <hcontainer name=”artículo”> to define a Spanish article rather than use <article>? While there is nothing that prevents this practice, that would not be in the spirit of Akoma Ntoso. A large part of the motivation of Akoma Ntoso is to promote both data and tool interoperability. Localising the element tags completely undermines Akoma Ntoso as a standard. You might as well simply use your own schema. Please consider the consumers of your data when facing this question, not just the producers.

[We use an alternate mechanism, provided by our tools, to present a localized term to the user rather than the element name.]

Another question I’ve have been has to do with hierarchical levels that might not have a formalised name at all. I’ve come across this a number of times, in a number of ways. First, it’s often an issue of very old documents where the document hierarchy was either not formalised or not explicitly stated and conversion involves some degree of guessing. Second, there are sometimes lower levels, for instance, below the section level, where the level names have simply not been formalised or are used inconsistently. Third, I’ve come across a case where the upper levels, above the section, were not named in because the corresponding concepts didn’t really exist in the language used in that jurisdiction. For these cases, we use the <level> element.

The <hcontainer> is a very useful element in Akoma Ntoso. It’s a key part of the design of the schema that allows it to be easily adapted to any legislative tradition. However, it should be used judiciously — only when there isn’t already an alternative.



Standard
Akoma Ntoso, LegisPro Sunrise, LEX Summer School, Standards

LEX Summer School 2017

For the past two weeks I’ve been in Italy attending the LEX Summer School and Akoma Ntoso Developer’s Workshop at the Ravenna campus of the University of Bologna. This is my eighth summer school in Ravenna and my tenth overall LEX Summer School including the two U.S. editions. It’s always one of the highlights of my year.

With Akoma Ntoso as a standard now all but completed, a product about to debut, and a couple Akoma Ntoso projects to our name, I thought it would be a good time to reflect how far we have come. Bill Gates once said “Most people overestimate what they can do in one year and underestimate what they can do in 10 years.” This is a case of that. At times, the progress is frustratingly slow and arduous, but when you look back how far we’ve come in 8 years, we’ve made pretty good progress.

When I arrived at the first summer school I attended back in 2010, I had never heard of Akoma Ntoso — let alone learned how to pronounce it. A lot of the discussion still revolved around whether using purpose-built XML tools or re-purposing office productivity software was the way to go. Did the world really need Akoma Ntoso or was Open Office’s XML formats adequate? What about Microsoft’s Office Open XML? Was it an alternative?

We don’t discuss that anymore — the answer is obvious. As Luca Cervone commented to me, all of a sudden the other approaches look so old-fashioned. In fact, the presentations that did still use that approach were apologetic that their decisions dated back to the early 2000s when the answer was less clear.

What we now see is the value of putting data first and paper second. Making paper take the back seat in order to take advantage of the inherent power of treating legislation as data is now clearly the way to go. We see this in all the innovative capabilities that were on display — from the advanced amending tools we’ve worked with the UK and Scottish Parliaments to develop, the rich ontology support tools being developed in several projects, to the various comparison and analysis capabilities that were on show. XML enables all of these capabilities, in ways that other approaches simply cannot.

Another change in the eight years is the extent to which Akoma Ntoso has been embraced, particularly in Europe:

  • In April of this year, the Chief Executive Board of the United Nations approved the use of Akoma Ntoso as the documentation standard throughout the entire system after a detailed analysis. (Akoma Ntoso began as a project of the UN Department of Economic and Social Affairs (UN/DESA) a decade ago).
  • Numerous projects at both the European Parliament and European Commission are now based on Akoma Ntoso, although perhaps in a bit of a disjoint manner.
  • The project I’ve devoted a lot of my life to over the past two years at the U.K. and Scottish Parliaments is committed to Akoma Ntoso. You can watch a video of an early version here.
  • The Italian Senate is adopting Akoma Ntoso to some extent, and the Italian Chamber of Deputies are considering following suit.
  • There are projects underway in Switzerland and South America to adopt Akoma Ntoso.
  • Even the U.S. House of Representatives has a prior commitment to support Akoma Ntoso in some way.

This is all very good progress and much more is simmering in the background.

One of my goals at this LEX Summer School was to start laying the seeds for an open framework API that would allow interoperable plugins to be developed that work with all Akoma Ntoso-based platforms. Here, Luca surprised me by showing the new open source Akomando toolkit. This is a JavaScript toolkit, to be made available via NPM, GitHub, and other means shortly, that will provide the basic utilities one needs to easily process XML. As the LIME editor and Xcential’s LegisPro are largely technologically aligned on modern and open web technologies, this toolkit is a natural fit for both applications. I think this is a very exciting development and one we plan to take advantage of as soon as possible.

So, all in all, not bad. Now it’s time to start building on that momentum. We have lots of ideas percolating that will be revealed in the months to come. I’m looking forward to doing another retrospective at the ten year mark.

Standard
Akoma Ntoso, HTML5, LegisPro Sunrise, LEX Summer School, Standards, technology, Track Changes

The Sun is Rising on Akoma Ntoso — and LegisPro too!

Two great news piece of news this week! First, the documentation for Akoma Ntoso has now been officially released by OASIS. Second, we’re announcing the latest version of  our LegisPro drafting platform for Akoma Ntoso, codenamed “Sunrise”.

After several years of hard work, we’ve made a giant step towards our goal of setting an international XML standard for legal documents. You can find the documents at the OASIS LegalDocML website. A special thanks to Monica Palmirani and Fabio Vitali at the University of Bologna for their leadership in this endeavour.

legispro250Later this week, Xcential will be announcing and showing the latest version of “Sunrise” version of LegisPro, at both NALIT in Annapolis, Maryland and at the LEX Summer School in Ravenna, Italy. This new version represents a long-planned change to Xcential’s business model. While we have a thriving enterprise business, we’re now focusing on also providing more affordable solutions for smaller governments.

Part of our plan is to foster an open community of providers around the Akoma Ntoso standard for legislative XML. With Akoma Ntoso now in place as a standard, we’re looking for ways to provide open interfaces such that cooperative tools and technologies can be developed. One of my goals at this years summer school in Ravenna is to begin outlining the open APIs that will enable this vision.

LegisPro

The new edition of LegisPro will be all about providing the very best options:

  1.  It will provide a word processing like drafting capability your drafters demand — along with the real capabilities you need:
    • We’re not talking about merely providing a way to style a word processing document to look like legislation.
    • We’re talking about providing easy ways to define the constructs you need for your legislative traditions, such as–
      • a configurable hierarchy,
      • configurable tagging of important information,
      • configurable numbering rules,
      • configurable metadata,
      • oh, and configurable styles too.
    • We’re talking about truly understanding your amending traditions and providing the mechanisms to support them, such as–
      • configurable track changes, because we understand that a word processor’s track changes are not enough,
      • as-published page and line markers, because we understand your real need for page and line numbers and that a word processor’s page and line numbering is not that,
      • robust typography, because we know there’s a quite a difference between the casual correspondence a word processor is geared for and the precision demanded in documents that represent laws and regulations.
  2. It will be as capable as we can make it — for real-world use rather than just a good demo:
    • We’re not talking about trying to sell you a cobbled together suite of tools we built for other customers.
    • We’re talking about working with specialists in all the sub-fields of legal informatics to provide best-of-breed options that work with our tools.
    • We’re talking about making as many options available to you as we know there is no one-size-fits-all answer in this field.
    • We’re talking about an extensible architecture that will support on-board plug-ins as well as server-side web-services.
    • We’re talking about providing a platform of choices rather than a box of pieces.
  3. It will be as affordable as we can possibly make it:
    • We’re talking about developing technologies that have been designed to be easily configured to meet a wide variety of needs.
    • We’re talking about using a carefully chosen set of technologies to minimize both your upfront cost and downstream support challenges.
    • We’re talking about providing a range of purchasing options to meet your budgetary constraints as best we can.
    • We’re talking about finding a business model that allows us to remain profitable — and spreads the costs of developing the complex technologies required by this field as widely and fairly as possible.
  4. It is as future-proof as we can possibly make it:
    • We’re not talking about trying to sell you on a proprietary office suite.
    • We’re talking about using a carefully curated set of technologies that have been selected as they represent the future of application development — not the past — including:
      • GitHub’s Electron which allows us to provide both a desktop and a web-based option, (This is the same technology used by Slack, WordPress, Microsoft’s Visual Studio Code, and hundreds of other modern applications.)
      • Node.js which allows us to unify client-side and server-side application development with “isomorphic JavaScript,”
      • JavaScript 6 (ECMAScript 2015) which allows us to provide a truly modern, unified, and object-oriented programming environment,
      • Angular and other application frameworks that allow us to focus on the pieces and not how they will work together,
      • CSS3 and LESS that allows us to provide state-of-the-art styling technologies for the presentation of XML documents,
      • the entire XML technology stack that is critical for enabling an information-centric rather than document-centric system as is appropriate for the 21st century,
      • and, of course, using the Akoma Ntoso schema for legislative XML to provide the best model for sharing data, information, tools, and other technologies. It’s truly a platform to build an industry on.
  5. It is as open as we can possibly make it:
    • We’re not talking about merely using an API published by a vendor attempting to create a perception of openness by publishing an API with “open” in the name.
    • We’re talking about building on a full suite of open source tools and technologies coming from vendors such as Google, GitHub, and even Microsoft.
    • We’re talking about using non-proprietary protocols such as HTTP and WebDAV.
    • We’re talking about providing an open API to our tools that will also work with tools of other vendors that support Akoma Ntoso.
    • And, while we must continue to be a profitable product vendor, we will still provide the option of open access to our GitHub repositories to our customers and partners. (We’ll even accept pull requests)

Our goal is to be the very best vendor in the legislative and regulatory space, providing modern software that helps make government more efficient, more transparent and more responsive. We want to provide you with options that are affordable, capable, and planned for the future. We want to do whatever we can to allay your fears of vendor lock-in by supporting open standards, open APIs, and open technologies. We want to foster an Akoma Ntoso-based industry of cooperative tools and technologies as we know that doing so will be in the best interests of everyone — customers, product vendors, service providers, and the people who support them. As someone once told me many years ago, if you focus on making the pie as large as you can, the crumbs left on the knife will be plenty enough for you.

Either come by our table at NALIT in Annapolis or join us for the Akoma Ntoso Developer’s Conference in Ravenna at the conclusion of the LEX Summer School to learn more. If neither of these options will work for you, you can always learn more at Xcential.com or by sending email to info@xcential.com.

Standard
Standards, technology, Uncategorized, W3C

The many lives of JavaScript

I recently worked out that I’ve learned, on average, a new programming language every two to three years. These many languages have been part of my toolbox for somewhere between four to six years before falling away to make room for new technologies. However, there is one programming language that has been a major part of my programming repertoire for almost 22 years now – and that is JavaScript.

My JavaScript programming skills have recently undergone a major renaissance as I’ve adopted JavaScript 6 (aka ECMAScript 2015), for most of my coding. The way I write code today is nothing like the code I wrote just one year ago – and I’ve gone back and largely modernised all active code to be consistent. Today’s programming style uses modern frameworks and is far more object oriented and asynchronous. There are many new features which have totally updated how I write code. Proper (while still limited) classes with mixins have replaced the ugly prototype mechanism I used to use for object orientation. Let and const declarations have caught latent bugs that were hidden in my code. Arrow functions (aka. lambda expressions) and promises have streamlined code that once was quite clunky. The list goes on…

Even my tools have changed. Microsoft’s surprisingly excellent Visual Studio Code has replaced the hodgepodge of tools I once used. We’re in the process of integrating Jasmine and Karma to the process. JavaScript Semistandard Style (no, I still like semicolons) has ensured a very clean code base – as well as catching a multitude of errors and sins.

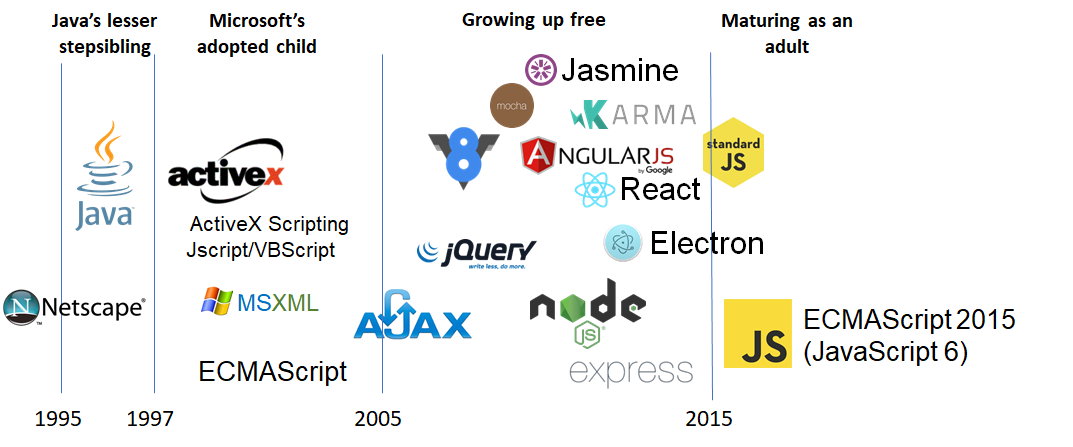

LifeOfJavaScript

All this change got me thinking about the four lives of JavaScript that I have worked through. Way back when, JavaScript had an awkward birth at the hands of Netscape as the lesser stepchild of the new Java programming language from Sun that was taking away all the attention. JavaScript was just a way to glue Java applets together in the browser. The problem is, Java applets really sucked.

Microsoft quickly saw the value of JavaScript though, and launched their own effort to steal Netscape’s baby. And so, JavaScript was stolen, renamed JScript and made to be the adopted sibling of Microsoft’s other scripting language, VBScript. One good bit progress that Microsoft made was to sponsor the standardisation of the language, although the resulting name of ECMAScript was another in a long string of unfortunate names the language has had to endure.

As JScript, JavaScript was to become an integral part of Microsoft’s entire ActiveX strategy. A lot of really cool technologies (yes, really) came of this allowing JScript to go beyond the browser. As an application extension language, it found its way into the XMetaL XML editor as the customisation technology. We used it and many of the ActiveX technologies to great effect when we implemented California’s bill drafting system. However, it didn’t just end there. We were able to use it on the server-side through Classic ASP and as a shell scripting language through the Windows Script Host. For a Microsoft-centric programmer, this era of JavaScript was a glorious one.

However, ActiveX was seriously flawed. It was entirely proprietary and riddled with problems. Microsoft abandoned it almost as quickly as they had adopted it – moving on to .Net where JScript.net was a non-starter. As Microsoft’s interest in ActiveX and even Internet Explorer waned in the early 2000s, life as a JavaScript programmer became ever gloomier. While the capabilities were awesome, there was obviously no future.

At this point, we made the somewhat painful decision to move away from Microsoft’s outmoded view of the Internet and go back to the basics. While it meant giving up a lot of capability, in the end it was an excellent decision for it pointed to the future. One tiny aspect of Microsoft’s ActiveX vision, the XMLHttpRequest object, escaped from Microsoft and gave rise to a whole different way of programming – Asynchronous JavaScript and XML (AJAX). This development and the emergence of new browsers, first Firefox and then Google’s Chrome with its V8 JavaScript engine, breathed new life into JavaScript.

Freed from Microsoft’s grip, JavaScript has flourished. The past decade has seen a plethora of new technologies. Isomorphic JavaScript (or Universal JavaScript) blurs the distinction between coding for the server and the client. In fact, technologies like Electron turn web-based application development back to the desktop where you can get the best of both worlds.

When I look back on the code I wrote during the ActiveX era (yes, we still support it), it looks prehistoric. Modern JavaScript is so much more capable and flexible than the clunky rendition we had back when COM-based ActiveX was supposed to change the world. As I mentioned earlier, how I program now is completely different – asynchronous programming is a difficult but very worthwhile skill to acquire.

Looking to the future, I see three paths. On one side is a mature but polarising platform that is dominated by Oracle. Oracle’s dominance ensures stability but also deters innovation. Looking to the other side, one finds another mature but polarising platform that is dominated by Microsoft. Here too, Microsoft’s dominance ensures stability but also deters innovation. The result is that it seems that both paths have now had their heyday. You don’t hear very much aspirational news from either technology path anymore — what it must have felt like programming a mainframe in COBOL at the height of the C/C++ era.

The third path seems to be the path of the future – staking out a middle ground that neither technology giant can stomp on. Sure, Google is a technology giant that plays a strong role, but they’re still reasonably well regarded by the development community at large (for now). It is this middle ground that has been the most fertile for new technologies – and JavaScript is right in the thick of it. There are so many new technologies it’s hard to keep track of them all — AngularJS, Node.js, React, Express.js, to name but a few. While this third path can play well with both of the other two, for me it is the path that truly points to the future.

This brings us to the fourth life for JavaScript – building on the momentum of the past decade to mount a credible challenge for enterprise apps. While I initially dismissed many of the new features of the language as mere syntactic sugar, my experience with it has shown it to be more. I now write much better code. I believe we’re on the verge of an explosion in JavaScript-enabled applications that will blur the distinction between the platforms, between the desktop and the browser, and between the server and the client. This is truly an exciting time, once more, to be developing in JavaScript.

It goes without saying, but stay tuned for more…

Standard
Akoma Ntoso, Standards, Uncategorized

Implementing an Akoma Ntoso Editor

Yes, we’ve now built a full real-world legislative drafting editor using the final release of the new OASIS standard for legislative XML known as Akoma Ntoso. No, it wasn’t easy, but drafting tools never are. While our project is not yet a finished implementation, it shows that Akoma Ntoso is adaptable to some of the most challenging demands it will face as a world-wide standard for digital legislation.

Akoma Ntoso is a very ambitious standard. It strives to anticipate all the possible needs that jurisdictions around the world will have while also planning for a wide range of useful applications that can be built on top of the data. The result is a sophisticated schema with many more features than any one implementation will ever need.

The trick is being able to mould Akoma Ntoso to fit the unique needs of a jurisdiction while also providing a user experience that is natural and fits the problem space exactly. This was the challenge that led us to develop a custom web-based XML editor. After surveying the available market of web-based editors, we quickly found that none would be sufficiently adaptable to allow Akoma Ntoso to realize its true potential.

There are two aspects of building an Akoma Ntoso editor that have required particular attention:

  1. Adapting Akoma Ntoso to fit the jurisdiction’s Documents
    If you’ve taken a look at Akoma Ntoso, you know that it’s jam-packed full of tags and features, far more than are ever necessary in a single implementation. Trying to create a single comprehensive implementation of it all, a one-size-fits-all approach, will only yield an overly complicated and unusable tool that will be suitable to nobody. At the same time, despite Akoma Ntoso’s efforts to cover all possible scenarios, there are still gaps in the schema where specifics details to individual jurisdictions are not covered. Akoma Ntoso anticipates this shortcoming by providing a pattern-centric mechanism for extending a set of generic elements to fill in the gaps.
    AkomaNtosoSubset.pngAn authoring tool needs to hide or omit the unused parts of Akoma Ntoso, adapt the parts that are being used to fit the specific requirements of a jurisdiction, and allow for extension of Akoma Ntoso using the generic mechanism for extension in such a way that these extensions would appear to be seamless. As it turns out, almost a third of the elements we’ve implemented are extension elements. The result is an editor that allows a fully compliant Akoma Ntoso document to be drafted (correct by construction), while at the same time ensuring that the document fully complies with the jurisdiction’s model for how that document be represented.
  2. Adapting the editor to fit the jurisdiction’s Document
    XML authoring tools don’t just work out of the box. Rather, they’re toolkits that allow documents that conform to a specific schema or model to be authored. How much flexibility this toolkit provides dictates the type of documents that can be authored. Sadly, it’s difficult for any editor to provide infinite flexibility in any dimension – so very careful consideration is necessary to understand whether or not the editor can be adapted to the need.When we at Xcential implemented California’s bill drafting system a decade ago, we used XMetaL because it provided an extensive customisation capability. Unfortunately, at the outset we failed to realize that XMetaL’s change tracking capabilities were limited and not customisable. When the full challenge of redlining became clear to us well into the project, we realized we were using an editor that couldn’t do the job. Thankfully, the project was able to get (and pay for) the necessary extensions to XMetaL without too much delay.

    One way to understand this problem is in the diagram below. On the left is the intrinsic capability offered by the authoring tool. On the right is a jurisdiction’s requirement. As XML authoring tools are toolkits, there is always a gap between the intrinsic capabilities on the left and the requirements on the right – and this gap must be closed one way or another. One way is to using any programming API offered to add customisations (shown as A). Another way is to limit the jurisdiction’s requirements (shown as B) to better suit the capabilities of the tool. Usually, it takes a combination of both to arrive at a suitable outcome. If the gap cannot be closed (shown as C), then the project is likely doomed to disappointment or even failure.EffortVsCapability.png

    One thing we learned early on is that, when it comes to legislative documents, there really isn’t a lot of wiggle-room in the requirements. The form of the documents is often dictated by long established traditions and good luck trying to change that. This is one case where the expression “It will take an Act of Congress” can be quite literally true.

    This means that the gap will have to be closed through customization and the effort (and risk) to do so will be quite substantial. XMetaL, way back in 2002, provided an extensive set of programmatic APIs to work from, and that very nearly wasn’t enough. Unfortunately, the newer web-based editors haven’t, for many reasons, come close to matching XMetaL’s level of customisability.

Building our own authoring tool

Understanding the challenges of Akoma Ntoso, our customer’s demanding requirements, and the limitations of the state-of-the-art in web-based authoring tools, we embarked on a project several years ago to build our own XML authoring tool. The result is now used in a number of applications. It’s been quite a challenge – and that’s an understatement. Building a highly configurable web-based XML authoring tool that is truly a step ahead of the old desktop editors of twenty years ago has required us to truly harness every aspect of modern web technologies and methodologies.

The result is an XML authoring tool especially adapted to the needs of Akoma Ntoso. However, it’s not just an Akoma Ntoso editor. It’s an XML authoring tool, capable of adapting to any reasonable XML scheme — for the legislative field, regulatory field, or any similar field where the demands of structured documents require a sophisticated level of customization.

If you want to see our tool in action in a bespoke implementation, here’s an early peek:

https://www.youtube.com/watch?v=CTAad2E-9Y4&feature=youtu.be

(This link shows a dated version at this point. It shows the editor as it was around December of 2016. We’ve advanced quite a bit since then — in both the intrinsic capabilities of the editor an in the capabilities built into the bespoke customisation)

Standard
Process, Standards, Transparency, W3C

Connected Information

As a proponent of XML for legislation, I’m often asked why an XML approach is better than a more traditional approach using a word processor. The answer is simple – it’s all about connected information.

The digital end point in a legislative system can no longer be publication of PDFs. PDFs are nothing but a kludgy way to digitize paper — a way to preserve the old traditions and avoid the future. Try reading a PDF on a cell phone and you see the problem. Try clicking on a citation in a PDF and you see the problem. Try and scrape the information out of a PDF to make it computer readable and you see the problem. The only useful function that PDFs serve is as a bridge to the past.

The future is all about connected information — breaking the physical bounds of what we think of as a document and allowing the nuggets of information found within them to be connected, interrelated, and acted upon. This is the real reason why the future lies with XML and its related technologies.

In my blog last week I provided a brief glimpse into how our future amending tools will work. I explored how legislation could be managed similar to how software is managed with GitHub. This is an example of how useful connected information becomes. Rather than producing bills and amendments as paper documents, the information is stored in a way that it can be efficiently and accurately automated — and made available to the public in a computer readable way.

At Xcential, we’re building our new web-based authoring system — LegisPro. If you take a close look at it, you’ll see that it has two main components. Of course, there is a robust XML editor. However, at the system’s very heart is a linking system — something we call a resolver. It’s this resolver where the true power lies. It’s an HTTP-based system for managing all the linkages that exist in the system. It connects XML repositories, external data sources, and even SQL databases together to form a seamless universe of connected information.

We’re working hard to transform how legislation, and indeed, all government information is viewed. It’s not just about connecting laws and legislation together through simple web links. We talking about providing rich connections between all government information — tying financial data to laws and legislation, connecting regulatory information together, associating people, places, and things to government data, and on and on. We have barely started to scratch the surface, but it’s clear that the future lies with connected information.

While we today position LegisPro as a bill authoring system — it’s much more than that. It’s some of the fundamental underpinnings necessary for a system to transform government documents of today into the connected information of tomorrow.

Standard
Akoma Ntoso, HTML5, LegisPro Web, LEX Summer School, Standards, Transparency

Data Transparency Breakfast, LEX US Summer School 2015, First International Akoma Ntoso Conference, and LegisPro Edit reveal.

Last week was a very good week for my company, Xcential.

We started the week hosting a breakfast put on by the Data Transparency Coalition at the Booz Allen Hamilton facility in Washington D.C.. The topic was Transforming Law and Regulation. Unfortunately, an issue at home kept me away but I was able to make a brief pre-recorded presentation and my moderating role was played by Mark Stodder, our company President. Thank you, Mark!

Next up was the first U.S. edition of the LEX Summer School from Italy. I have attended this summer school every year since 2010 in Italy and it’s great to see the same opportunity for an open dialog amongst the legal informatics community finally come to the U.S. Monica Palmirani (@MonicaPalmirani), Fabio Vitali, and Luca Cervone (@lucacervone) put on the event from the University of Bologna. The teachers also included Jim Mangiafico  (@mangiafico) (the LoC data challenge winner), Veronique Parisse (@VeroParisse) from the European Union, Andrew Weber (@atweber) from the Library of Congress, Kirsten Gullickson (@GullicksonK) from the Office of the Clerk at the U.S. House of Representatives, and myself from Xcential. I flew in for an abbreviated visit covering the last two days of the Summer School where I covered how the U.S. Code is modeled in Akoma Ntoso and gave the students an opportunity to try out our new bill drafting editor — LegisProedit.

After the Summer School concluded, it was followed by the first International Akoma Ntoso Conference on Saturday, where I spoke about the architecture of our new editor as well as how the USLM schema is a derivative of the Akoma Ntoso schema. We had good turnout, from around the world, and a number of interesting speakers.

This week is NCSL in Seattle where we will be discussing our new editor with potential customers and partners. Mark Stodder from Xcential will be in attendance.

In a month, I’ll be in Ravenna once more for the European LEX Summer School — where I’ll be able to show even more progress towards the goal of a full product line of Akoma Ntoso tools. It’s interesting times for me.

The editor is coming along nicely and we’re beginning to firm up our QuickStarter beta plans. I’ve already received a number of requests and will be getting in touch with everyone as soon as we’re ready to roll out the program. If you would like to participate as a beta tester — or if you would just like more information, please contact us at info@xcential.com.

I’m really excited about how far we’ve come. Akoma Ntoso is on the verge of being certified as an official OASIS standard, our Akoma Ntoso products are coming into place, and interest around the world is growing. I can’t wait to see where we will be this time next year.

Standard
Akoma Ntoso, HTML5, LegisPro Web, LEX Summer School, Standards, Track Changes, W3C

Coming soon!!! A new web-based editor for Akoma Ntoso

I’ve been working hard for a long time — building an all new web-based editor for Akoma Ntoso. We will be showing it for the first time at the upcoming Akoma Ntoso LEX Summer School in Washington D.C.

Unlike our earlier AKN/Editor, this editor is a pure XML editor designed from the ground up using the XML capabilities that modern browsers possess. This editor is much more robust, more precise,  and is very scalable.

NewEditor

Basic Features

  1. Configurable XML models — including Akoma Ntoso and USLM
  2. Edit full documents or portions of large documents
  3. Flexible selection and editing regardless of XML structure
  4. Built-in redlining (change tracking) supporting textual AND structural changes
  5. Browse document sources with drag-and-drop.
  6. Full undo & redo
  7. Customizable attribute editor
  8. Search and replace
  9. Modular architecture to allow for extensive customization

Underlying Technology

  1. XML-based editing component
    • DOM 4 support
    • XPath Support
    • CSS Styling
    • Sophisticated event model
  2. HTTP-based resolver architecture for retrieving documents
    • Interpret citations
    • Deference URLs
    • WebDAV adaptors to document repositories
    • Query repositories with XQuery or databases with SQL
  3. AngularJS-based User Interface using HTML5
    • Component modules for easy customization
  4. XML repository for storing documents
    • Integrate any XML repository
    • Built-in support for eXist-db
  5. Validation & Publishing
    • XML Schema validator
    • XSL-FO publishing

We’ll reveal a lot more at the LEX Summer School later this month! If you’re interested in our QuickStart beta program, drop me a note at grant.vergottini@xcential.com.

Standard
